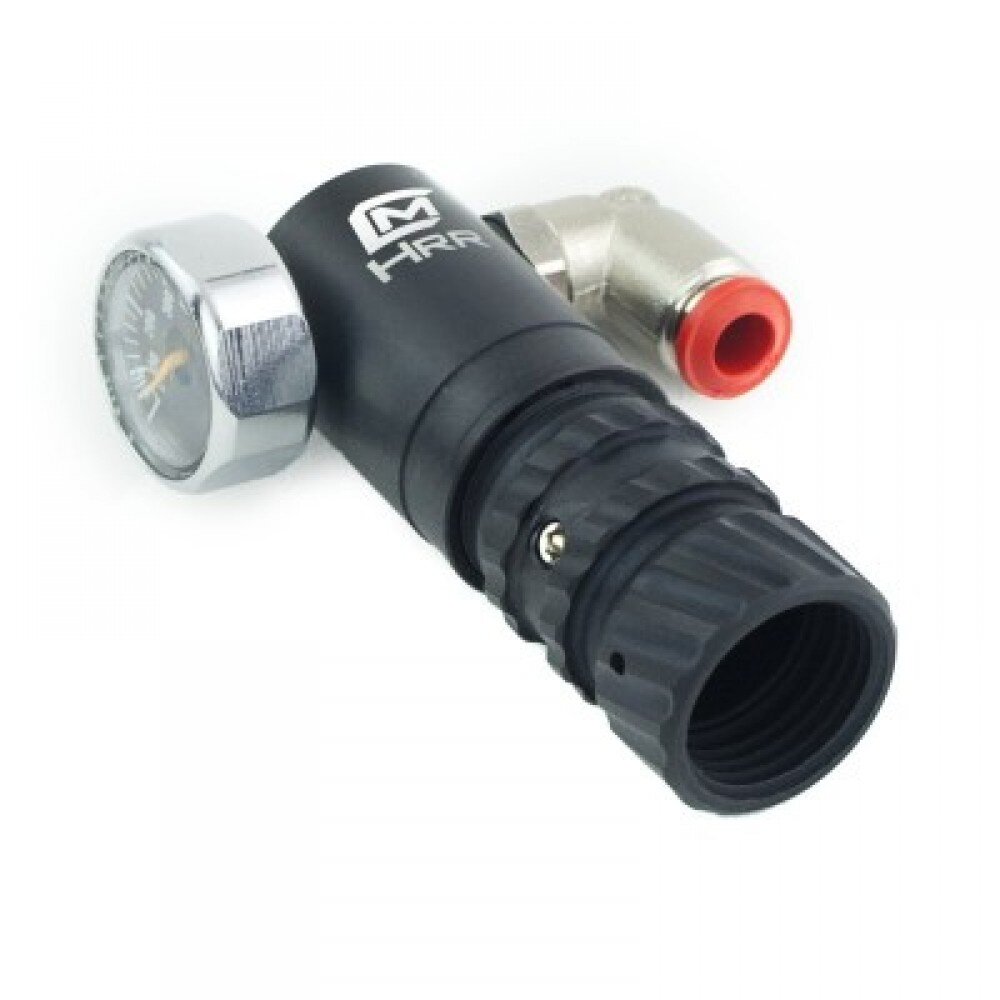

REGULATOR HRR - 6MM - CU MANOMETRU

Regulator HPA fi 6mm Mancraft

Gas Type: CO2 / HP

Provided with a pressure gauge manometer indicating the output pressure.

This device reduces the gas pressure.

The pressure can be adjusted from 0 to 15 bar by turning the handle/knob from the regulator. By screwing it, the pressure increases.

Regulator output is adapted for 4mm cable/hose (used for SDiK conversion kits) or 6mm (for PDiK). Thread at the output is standard airsoft thread, you can simply put QD in here.

Unscrew our fitting and screw in fitting for your HPA line.

Entrance of regulator - thread G1/2 "- Standard Paintball CO2/HP bottles and 12g CO2 adaptors.

The regulator can be used with ON / OFF and the PIN bottles.

Output of the hose - angular L-shaped.

To use it with HP tank you should put m4 screw (in set) in bottom of the regulator. It will press pin in HP tank. That screw should be out for 1-2mm.

NOTE!

In the package we find an additional spring, whose purpose is to increase performance at low pressure.

The modification process is illustrated in the pictures, as follows:

1. Unscrew the top of the regulator.

2. Remove the screw and washer mounted on the regulator.

3. Replace the screw and washer with those in the pack.

4. Mount back all the parts.
